The Ledmak sofa webbing tape production machine is designed for high-quality elastic webbing used in furniture applications. It ensures stable, high-speed weaving with precise tension control. Compatible with multiple yarn types, it enables durable, long-lasting, and standard-compliant sofa webbing tape production.

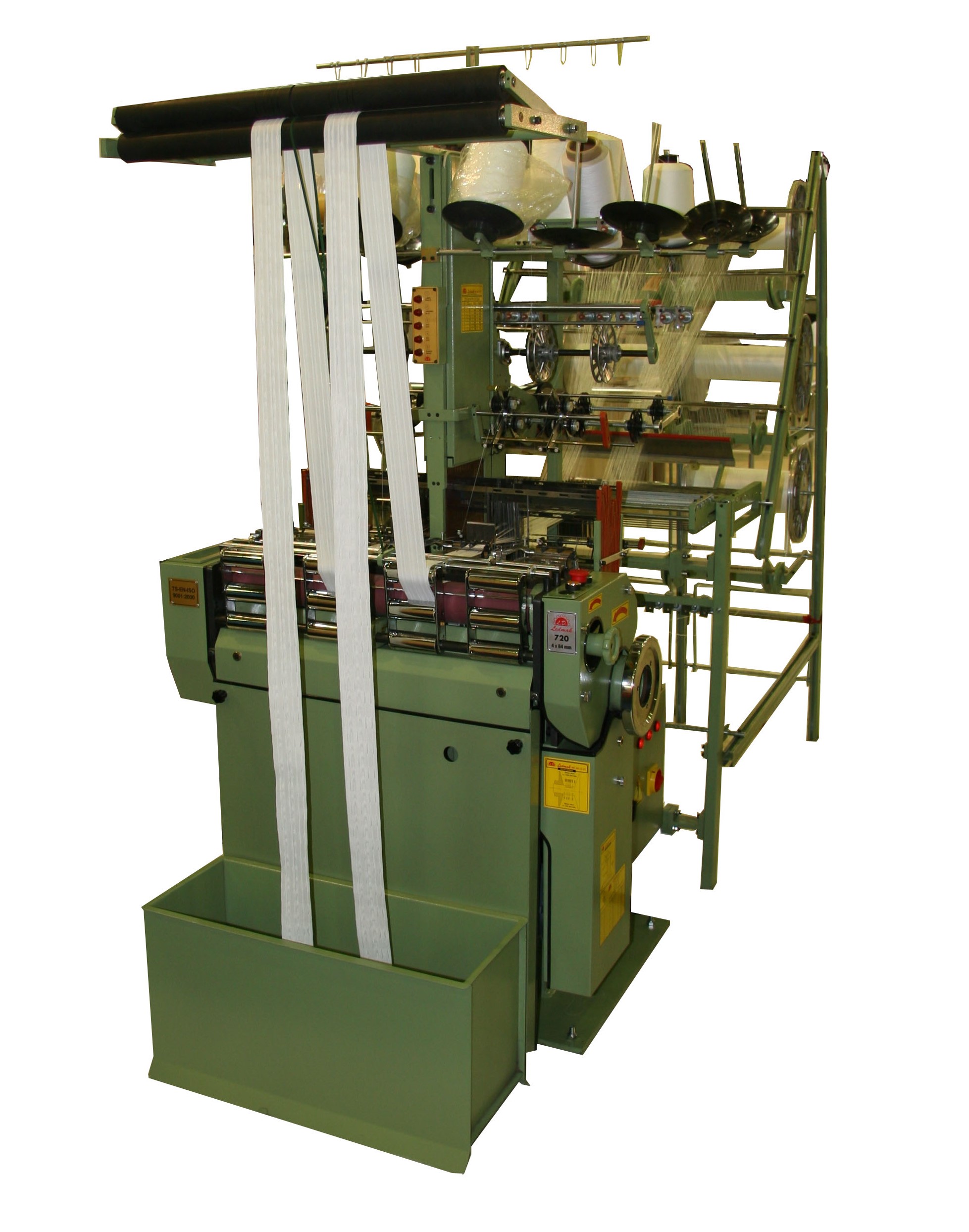

Curtain Tape Production Machine
ENF Series
Narrow weaving machine with link system or electronic system designed for the production of curtain tapes

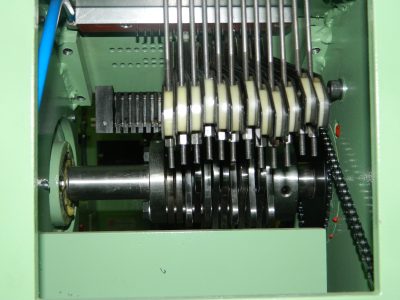

The Ledmak curtain tape weaving machine delivers maximum efficiency through its chain-driven system, quick pattern change, precise tension control, easy setup, and low maintenance requirements. Engineered for 24/7 industrial operation, it provides long-term durability, reduced operating costs, and superior weaving accuracy.
- The parts on our machine are high quality and 100% domestically produced.
- An automatic stop is available in case of rope breakage.
- It is equipped with emergency warning systems.
- A speed control device (inverter) is available.
- Slow motion (JOG) mode.
- Auxiliary weaving system (I - V)
- Our machine, which is extremely practical to set up, allows for easy adjustment of the number of heads, opening systems, and pattern changes.
- It has a high production speed.
- The quality of our machines is supported by various certifications worldwide. They are manufactured in compliance with CE standards and are safe.
| Weaving Head Counts | 12 | 10 | 8 | 6 | 4 | 2 | 2 | ||
|---|---|---|---|---|---|---|---|---|---|
| Weaving Width (mm) | ENF550 | – | – | 27 | 45 | 66 | 160 | – | |
| ENF720 | 20 | 27 | 35 | 55 | 85 | 200 | 280 | ||
| Weft Weaving Direction | → | → | → | → | → | → (↔) | → ← | ||
| Weft Density | Standard 8-40 wefts / cm. | ||||||||
| Number of Frames | 12-16-20 Frame | ||||||||
| Pattern Length | Eccentric 1 : 8 Pattern Chain: 1 : 8 / 16 - 48 (48 - 96) | ||||||||
| Engine | 1.5 kW Brake Motor | ||||||||
| Electricity | 380 V / 220 V - 50Hz - 3 Ph | ||||||||
Şirketiniz hangi tür tekstil makinelerini üretmektedir?
Dar dokuma makineleri, kroşe örme makineleri, çözgü makineleri, rulo sarım makineleri ve medikal tekstil üretim ekipmanları dahil olmak üzere geniş bir tekstil makine yelpazesi üretiyoruz.
Kurulum, eğitim ve satış sonrası teknik destek sağlıyor musunuz?
Evet, müşterilerimizin makinelerini verimli ve sorunsuz kullanabilmesi için kurulum hizmeti, operatör eğitimi ve sürekli teknik destek sağlıyoruz.
Makineleriniz özelleştirilmiş üretim ihtiyaçlarına uygun mu?
Makinelerimiz üretim gereksinimlerine göre özelleştirilebilir. Müşteri ihtiyaçlarına bağlı olarak en, hız, elektronik kontrol sistemleri ve opsiyonel özelliklerde esneklik sunuyoruz.
Makineleriniz hangi malzemeler ve uygulamalar için tasarlanmıştır?
Makinelerimiz polyester, naylon, pamuk, elastik iplikler ve özel medikal tekstiller gibi çeşitli malzemelerin işlenmesi için tasarlanmıştır. Genellikle giyim, teknik tekstiller, medikal ürünler ve endüstriyel uygulamalarda kullanılır.
Makineleriniz hakkında fiyat teklifi almak veya daha fazla bilgi edinmek için ne yapmalıyım?
Web sitemizdeki iletişim formu, e-posta veya telefon aracılığıyla satış ekibimizle iletişime geçebilirsiniz. Üretim bilgileriniz bize ulaştığında, size özel bir fiyat teklifi hazırlayacağız.
What types of textile machines does your company manufacture?
We manufacture a wide range of textile machinery including narrow fabric weaving machines, crochet knitting machines, warping machines, roll winding machines, and medical textile production equipment.
Do you provide installation, training, and after-sales technical support?
Yes, we offer complete installation services, operator training, and ongoing technical support to ensure that our customers use their machines efficiently and without interruption.
Are your machines suitable for customized production needs?
Our machines can be customized according to production requirements. We offer flexibility in widths, speeds, electronic control systems, and additional optional features depending on customer needs.
What materials and applications are your machines designed for?
Our machines are designed to process a variety of materials such as polyester, nylon, cotton, elastic yarns, and specialized medical textiles. They are commonly used in apparel, technical textiles, medical products, and industrial applications.
How can I receive a quotation or get more information about your machines?
You can contact our sales team through email, phone, or the contact form on our website. Once we receive your production details, we will prepare a customized quotation for you.
RELATED PRODUCTS

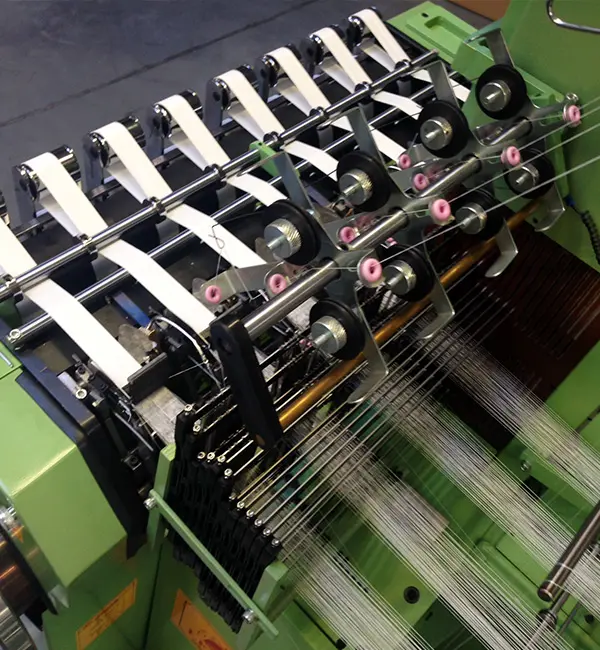

ENF550 Narrow Weaving Machines
