Carpet Fringe Production Machine

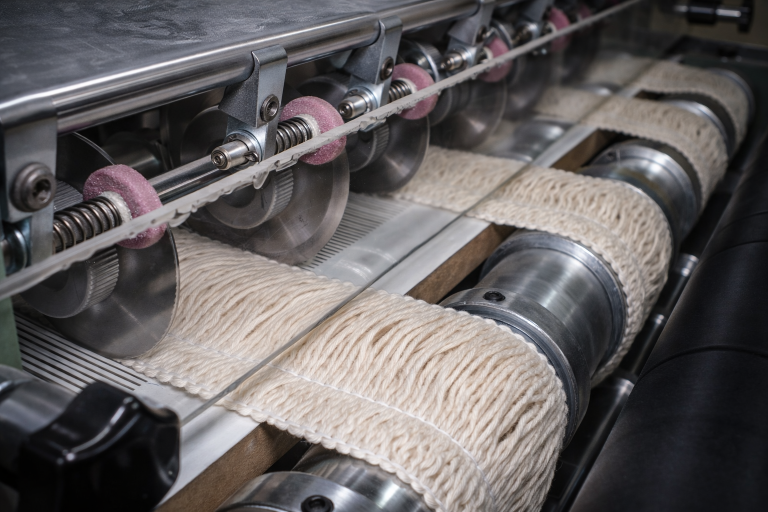

Developed by Ledmak, the Carpet Fringe Production Knitting Machine is engineered based on the company’s extensive expertise in crochet knitting and narrow fabric weaving machines. The machine is specifically designed for the efficient and consistent production of fringes used on carpet edges, ensuring uniform structure, precise dimensions, and high tensile strength.
- Long throw system.
- The parts on our machine are high quality and 100% domestically produced.
- Automatic stop is available in case of rope and rubber breakage.
- It is equipped with emergency warning systems.
- A speed control device (inverter) is available.
- Slow motion (JOG) mode.
- Practical and adjustable.
- It has a high production speed.
- Vibration-absorbing special feet are available.
| Working Width | 600 mm |
|---|---|
| Fayn | 10 – 15 |
| Scarf Bar Count | 3 Bars |
| Fava Bean System | → |
| Knit Density | 5–25 stitches/cm |
| Electric | 1.5 kW Brake Motor, 380V, 3Ph |
| Net Weight | 560 kg |
| Dimensions | 160 x |
| Equipments | Rubber Feeder Devices Speed Control (Inverter) Warp Yarn Tension Adjustment System Rubber and Strip Back Filling Rollers Other standard accessories |
Dar dokuma makineleri, kroşe örme makineleri, çözgü makineleri, rulo sarım makineleri ve medikal tekstil üretim ekipmanları dahil olmak üzere geniş bir tekstil makine yelpazesi üretiyoruz.
Evet, müşterilerimizin makinelerini verimli ve sorunsuz kullanabilmesi için kurulum hizmeti, operatör eğitimi ve sürekli teknik destek sağlıyoruz.
Makinelerimiz üretim gereksinimlerine göre özelleştirilebilir. Müşteri ihtiyaçlarına bağlı olarak en, hız, elektronik kontrol sistemleri ve opsiyonel özelliklerde esneklik sunuyoruz.
Makinelerimiz polyester, naylon, pamuk, elastik iplikler ve özel medikal tekstiller gibi çeşitli malzemelerin işlenmesi için tasarlanmıştır. Genellikle giyim, teknik tekstiller, medikal ürünler ve endüstriyel uygulamalarda kullanılır.
Web sitemizdeki iletişim formu, e-posta veya telefon aracılığıyla satış ekibimizle iletişime geçebilirsiniz. Üretim bilgileriniz bize ulaştığında, size özel bir fiyat teklifi hazırlayacağız.
We manufacture a wide range of textile machinery including narrow fabric weaving machines, crochet knitting machines, warping machines, roll winding machines, and medical textile production equipment.
Yes, we offer complete installation services, operator training, and ongoing technical support to ensure that our customers use their machines efficiently and without interruption.
Our machines can be customized according to production requirements. We offer flexibility in widths, speeds, electronic control systems, and additional optional features depending on customer needs.
Our machines are designed to process a variety of materials such as polyester, nylon, cotton, elastic yarns, and specialized medical textiles. They are commonly used in apparel, technical textiles, medical products, and industrial applications.
You can contact our sales team through email, phone, or the contact form on our website. Once we receive your production details, we will prepare a customized quotation for you.
