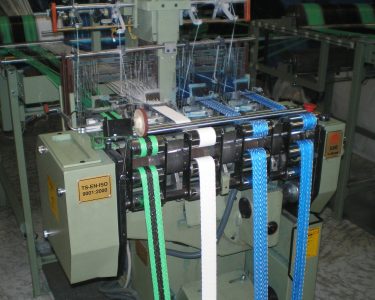

Big Bag Strap Production Machine
The Big Bag strap weaving machine is a professional narrow-weaving solution designed for the production of high-strength PP webbing, FIBC lifting belts, sack webbing, and load-carrying belts. The machine ensures high strength, smooth edge structure, and standard width tolerances for the webbing used in heavy-duty big bags. Its energy-efficient design, stable operating performance, and high speed capacity make it an ideal machine for industrial manufacturers. Automatic tension control, adjustable webbing width, and long-term maintenance-free operation ensure uninterrupted production. It is a reliable solution that increases productivity for companies engaged in the FIBC sector, packaging, and industrial webbing production.
- Reinforced heavy-duty weaving equipment with special feeders and delivery systems tailored to the product and yarn to be woven
- The parts on our machine are high quality and 100% domestically produced.
- An automatic stop is available in case of rope breakage.
- It is equipped with emergency warning systems.
- A speed control device (inverter) is available.
- Slow motion (JOG) mode.
- Auxiliary weaving system (I - V)
- Our machine, which is extremely practical to set up, allows for easy adjustment of the number of heads, opening systems, and pattern changes.
- It has a high production speed.
- The quality of our machines is supported by various certifications worldwide. They are manufactured in compliance with CE standards and are safe.
| Weaving Head Counts | 6 | 4 | 2 | |
|---|---|---|---|---|
| Weaving Width (mm) | LMX500 | 45 | 66 | 84 |
| LMX700 | – | – | – | |
| Warp Weaving Direction | → | → | → | |
| Scarf Density | Adjustable | |||
| Number of Frames | 12–16–20 Frames | |||
| Pattern Length | Eccentric 1:8 Pattern Chain: 1:8 / 16 - 48 (48 - 96 as required) | |||
| Motor | 1.5 kW Inverter-Controlled Brake Motor | |||
| Electricity | 380 V / 220 V - 50Hz - 3 Ph | |||
Dar dokuma makineleri, kroşe örme makineleri, çözgü makineleri, rulo sarım makineleri ve medikal tekstil üretim ekipmanları dahil olmak üzere geniş bir tekstil makine yelpazesi üretiyoruz.
Evet, müşterilerimizin makinelerini verimli ve sorunsuz kullanabilmesi için kurulum hizmeti, operatör eğitimi ve sürekli teknik destek sağlıyoruz.
Makinelerimiz üretim gereksinimlerine göre özelleştirilebilir. Müşteri ihtiyaçlarına bağlı olarak en, hız, elektronik kontrol sistemleri ve opsiyonel özelliklerde esneklik sunuyoruz.
Makinelerimiz polyester, naylon, pamuk, elastik iplikler ve özel medikal tekstiller gibi çeşitli malzemelerin işlenmesi için tasarlanmıştır. Genellikle giyim, teknik tekstiller, medikal ürünler ve endüstriyel uygulamalarda kullanılır.
Web sitemizdeki iletişim formu, e-posta veya telefon aracılığıyla satış ekibimizle iletişime geçebilirsiniz. Üretim bilgileriniz bize ulaştığında, size özel bir fiyat teklifi hazırlayacağız.
We manufacture a wide range of textile machinery including narrow fabric weaving machines, crochet knitting machines, warping machines, roll winding machines, and medical textile production equipment.
Yes, we offer complete installation services, operator training, and ongoing technical support to ensure that our customers use their machines efficiently and without interruption.
Our machines can be customized according to production requirements. We offer flexibility in widths, speeds, electronic control systems, and additional optional features depending on customer needs.
Our machines are designed to process a variety of materials such as polyester, nylon, cotton, elastic yarns, and specialized medical textiles. They are commonly used in apparel, technical textiles, medical products, and industrial applications.
You can contact our sales team through email, phone, or the contact form on our website. Once we receive your production details, we will prepare a customized quotation for you.
