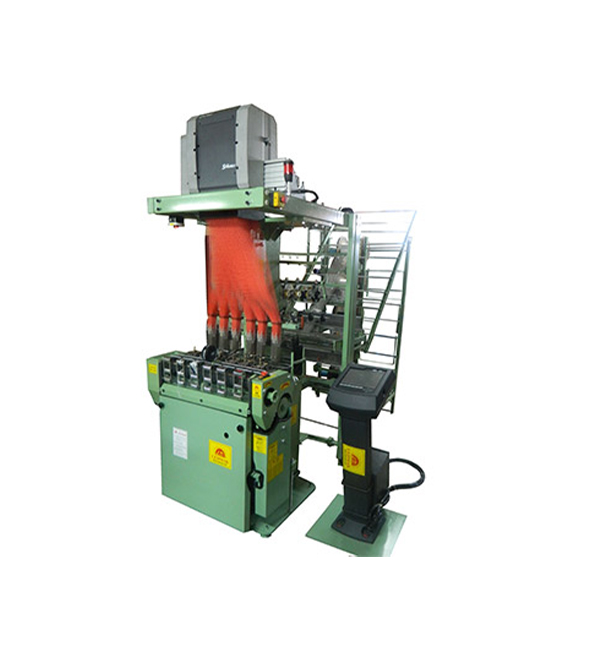

ENFJ Jacquard Narrow Weaving Machines

Developed with the assurance of Ledmaksan Makina, the ENFJ Series Computer-Controlled Jacquard Narrow Weaving Machines stand out with their high precision and flexible production capabilities.

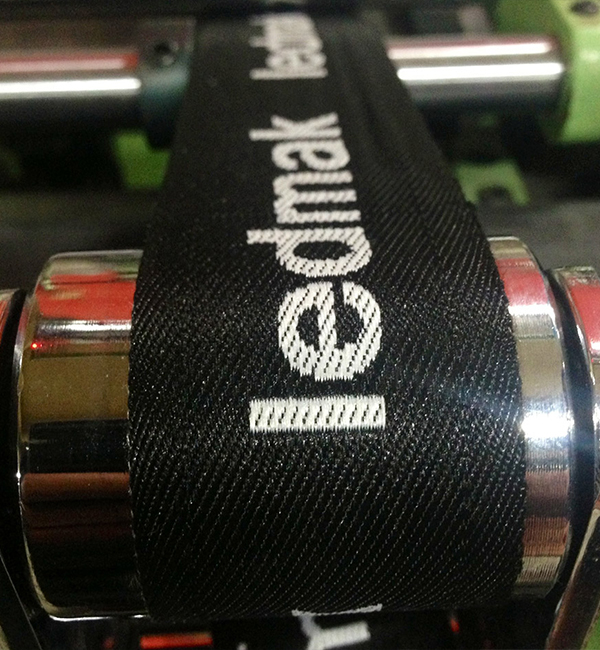

Thanks to its advanced software infrastructure, the machine can easily weave logos, texts, slogans, and graphic symbols onto elastic or non-elastic narrow bands with high resolution.

Designed for high-speed production and maximum efficiency, the ENFJ series offers manufacturers significant advantages with its energy-saving operation and low maintenance needs. Features like automatic pattern management, user-friendly control panel, and stable performance make it one of the most efficient solutions in the narrow weaving industry.

Get Info

Features
Technical Information

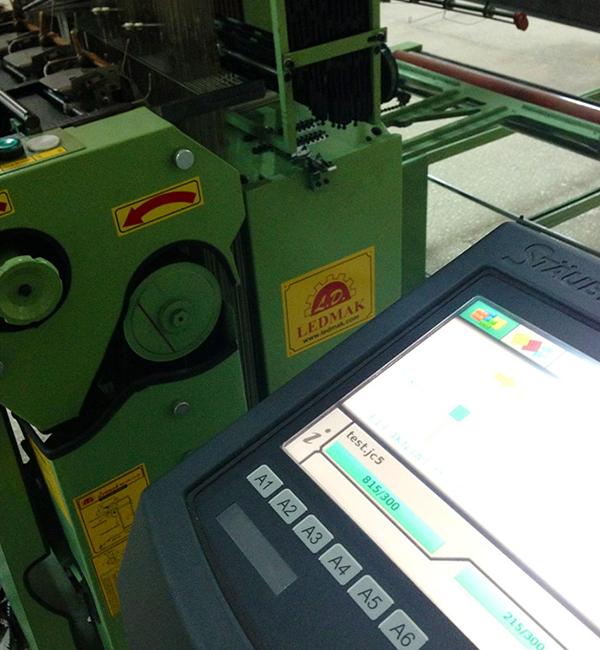

Computer control unit synchronized with narrow weaving machine.
USB input for data transfer (pattern etc.).
Easy pattern programming and changing.
The parts available on our machine are high quality and 100% domestic production.
There is an automatic stop in case of yarn breakage.
There are emergency warning systems on it.
There is a speed controller (inverter).
Slow motion (JOG) mode.
Assisted weaving system (I - V).
In our machine with extremely practical settings, head number change, shedding opening systems and pattern changing settings can be easily made.
It has a high production speed.
The quality of our machines It is supported by various documents worldwide. It has production and safety in accordance with CE standards.

Weaving Head Numbers		8	6	4	2
Weaving Width (mm)	ENF550	27	45	66	120
	ENF720	-	-	-	-
Weft Weaving Direction
Jacquard Hooks		192 - 448.
Weft Density		Changable.
Number of Frames		12-16-20 Frame.
Pattern Length		Eccentric 1 : 8 Pattern Chain: 1 : 8 / 16 - 48 ( 48 - 96 upon request).
Engine		1.5 kW Inverter Brake Motor.
Electric		380 V / 220 V - 50Hz - 3 Ph.
