ENF550 Narrow Weaving Machines

Narrow Weaving Machines

ENF550 Narrow Weaving Machines

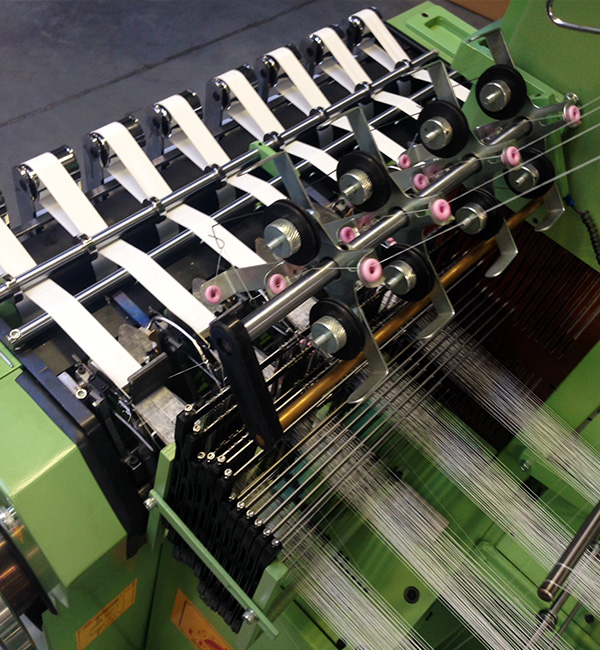

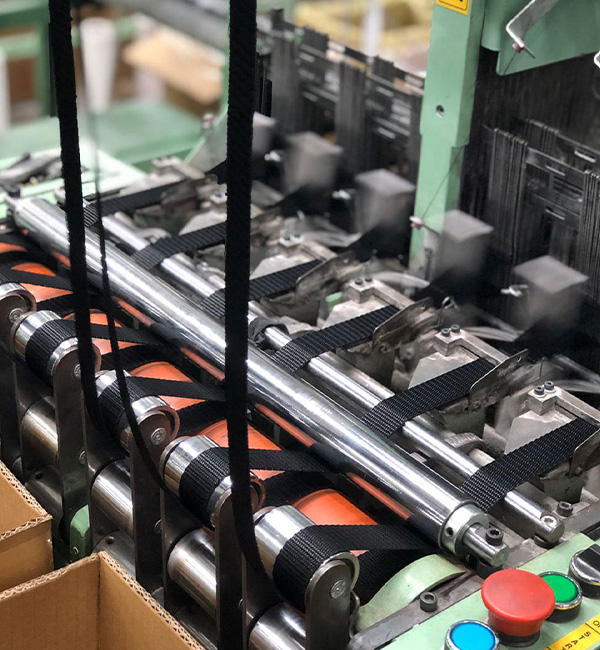

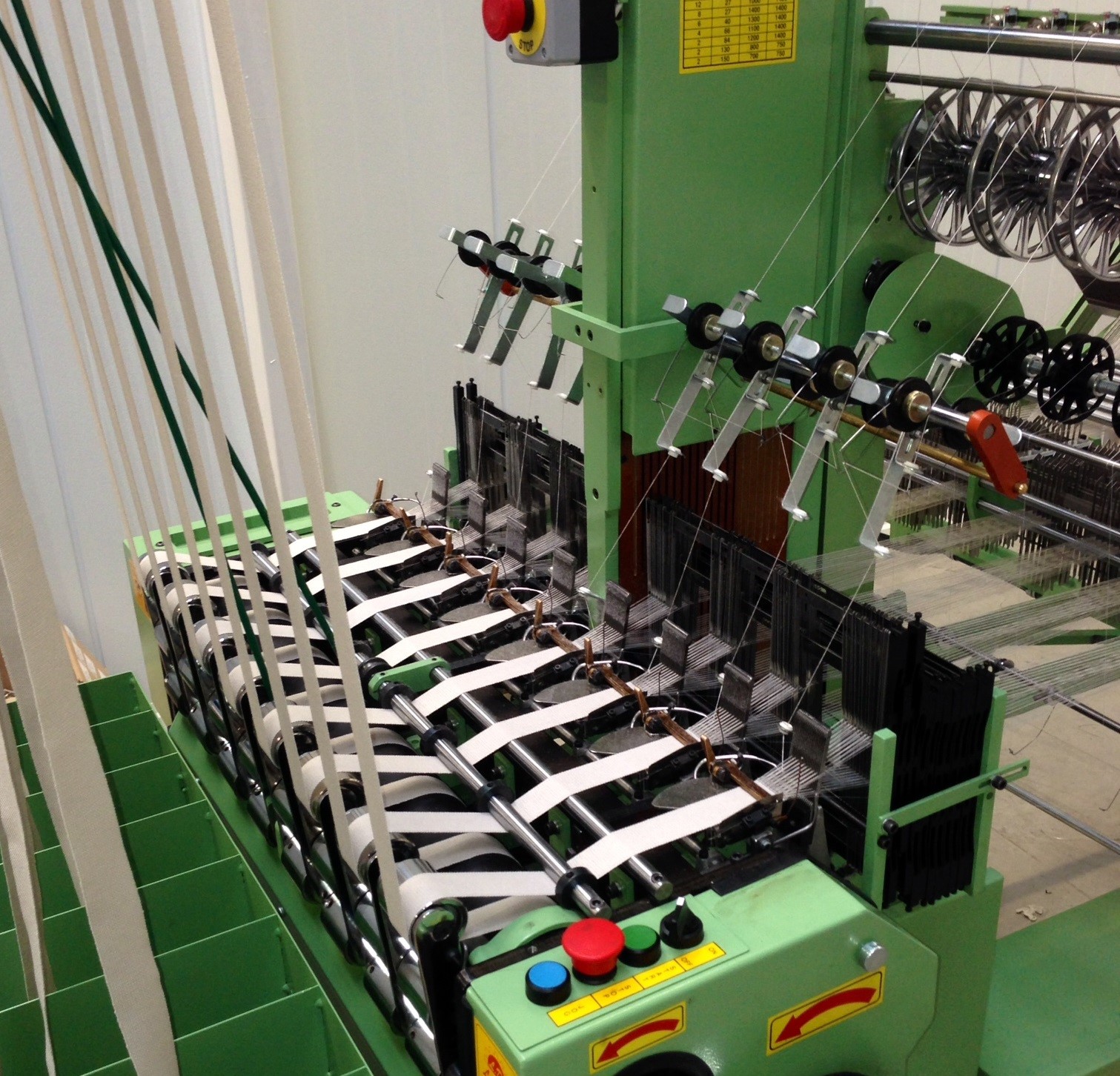

Our ENF550 model narrow weaving machines can easily manufacture elastic ribbons, flat ribbons and all kinds of narrow weaving ribbons.

Thanks to its high working speed and efficiency, our ENF series narrow weaving machines always provide their customers with the best results and maximum production capacity.

Main Production: Ribbon, elastic band, belt, curtain tape, elastic band, woven elastic, ribbon...

Get Info

Features
Technical Information

The parts on our machine that are B18 are high quality and 100% domestic production.
There is an automatic stop in case of yarn breakage.
There are emergency warning systems on it.
There is a speed controller (inverter).
Slow motion (JOG) mode.
Assisted weaving system (I - V)
Pattern change settings can be made easily on our machine that has extremely practical settings.
It has a high production speed.
The quality of our machines is supported by various documents worldwide. It has production and safety in CE standards.

Weaving Head Numbers			8	6	4	2
Weaving Width (mm)	ENF550	-	27	45	66	160

Weft Weaving Direction
Weft Density		Standard 8-40 weft / cm.
Number of Frames		12-16-20 Frame
Pattern Length		Eccentric 1 : 8 Pattern Chain: 1 : 8 / 16 - 48 ( 48 - 96 )
Engine		1.5 kW Brake Motor
Electric		380 V / 220 V - 50Hz - 3 P
