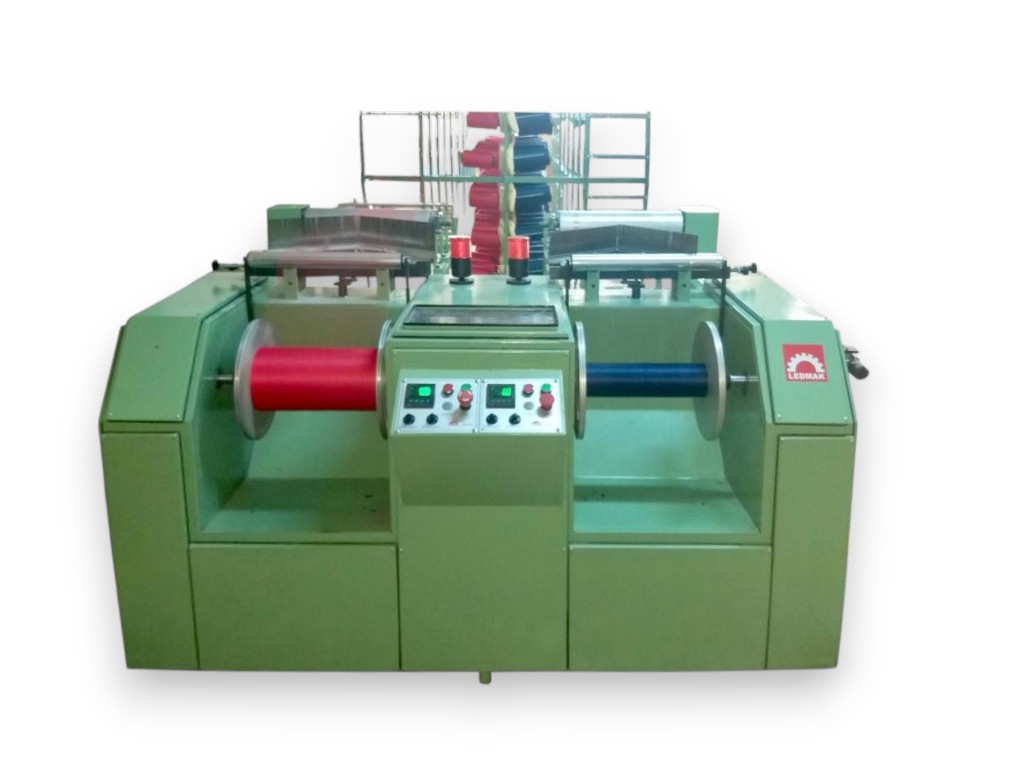

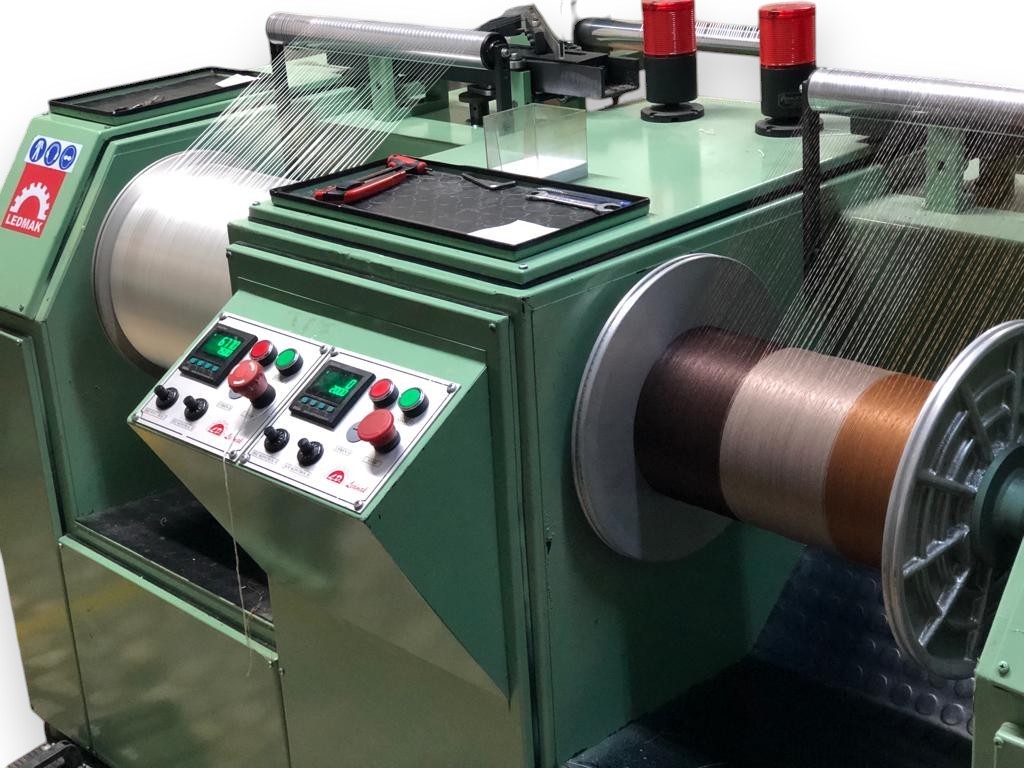

Faster warp winding thanks to two winding lines.
Easy control of 2 lines of warp winding with one operator.
Time saving in yarn changing.
Adjustable metering counter and automatic stop.
Semi-automatic spool loading-unloading system.
Automatic stop in case of yarn breakage.
Adjustable reed traveling system.
Electromagnetic brake system.
High speed and easy warp adjustment.
Working with all types of yarn.
Special creel for the yarn to be wound.
Spool Width | Min. 20cm , Max. 40cm |
Spool Diameter | Standard 35cm - Max. 50cm |
Speed | 1.500 RPM / min (adjustable). |
Yarn Types | Polypropylene, Polyester, Cotton, Monofilament. Etc. |
Electric | 1.5 kW Brake Motor, 380V, 3pH. |
Dimensions | 120 Width - 200 cm length + Creel. |
Equipments | Creel. |
